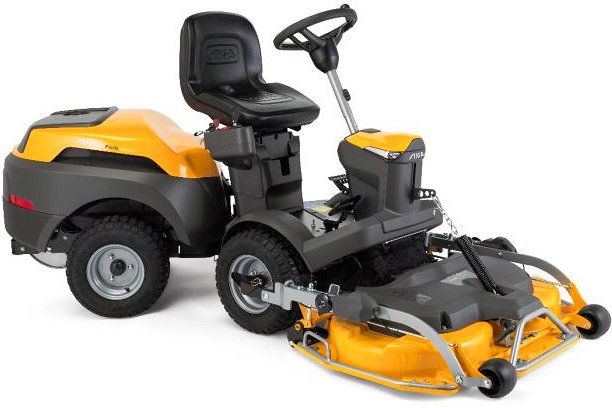

Stiga Park 500 Front Cut Ride-on Mower (Power Unit Only)

Stiga Park 500 Ride-On Tractor Mower 95cm / Manual / 432cc. The Park 500 out-front mower combines reliability and manoeuvrability in one machine. It's driven by a reliable STIGA 432cc one-cylinder engine, while its special articulation (50:50) jointly with the power-assisted steering will help you move around the garden and its obstacles in the easiest way.

This mower's front-mounted deck also provides a clear view of your working area, easier access to corners, and beautiful results along edges.
  DECK NOT INCLUDED.

Special Features Stiga Park 500 Ride-On Tractor Mower 95cm / Manual / 432cc

Reliable 432cc STIGA ST 450 one-cylinder engine -

Front-mounted deck with cutting widths from 95cm to 100cm
Rear-wheel drive, 50:50 articulation and power steering
Compact side dashboard with easy-to-use operations
Comfortable seat with plenty of leg room

Driven by a 432cc STIGA ST 450 one-cylinder engine, the Park 500 brings you reliable, comfortable and enjoyable mowing. This out-front mower's 50:50 articulated power steering and innovative chassis design make steering easy and help you zip around obstacles.

The Park 500 's front-mounted deck gives you a clear view ahead, easy access to corners and beautiful cuts along edges. And because it’s a floating deck, it glides smoothly over uneven surfaces. Plus its Quick Flip mechanism enables you to clean the deck in seconds. Driving this front-mower tractor is easy too, thanks to a compact side dashboard with useful commands - including a feature to electronically adjust the cutting height.

For your complete comfort, the Park 500 's seat features lower-back support, and there's plenty of leg room for getting in and out. Just sit back, relax and enjoy the ride. Trailer hitch included. Cutting Deck NOT included, available to purchase separately.

Compatible Deck(s):
* Stiga Combi 95 Q Plus
* Stiga Combi 100 Q Plus

Please note - due to the size and shape of these lawnmowers, delivery by pallet of Power Unit + Deck is not typically possible. We can deliver within a 50 mile radius of our Showroom (LN6 9AL). If you are unsure or require further information, please contact our Sales team by phone or email

This mower comes with an extended 5-year domestic warranty. (T&C’s Apply)

Specifications Stiga Park 500 Ride-On Tractor Mower / Manual / 432cc

POWER
Battery capacity - 30 Ah
Power - 8.1 kW
Power source - Petrol
Engine Brand - STIGA
Engine model - ST 450 Powered by STIGA
Displacement - 432 cm³
Engine rotation speed - 3200 rpm
Battery Voltage - 12 V
Choke - Manual
Engine cooling - Air
Fuel tank capacity - 12 l
Easy refill - Yes
Engine Oil tank capacity - 1.2 l
Maximum working area - 4500m2

CUTTING SYSTEM
Cutting method - Combi - switch between Multiclip mulching and rear discharge
Cutting width - 95 - 100 cm
Deck lift - Manual
Cutting height adjustment - Electric
Service position - Yes
Deck Included - NO

DRIVE SYSTEM
Traction - Rear-wheel drive
Maximum speed forward - 10 km/h

TRANSMISSION
Transmission method - Pedal-operated
Transmission type - Hydrostatic

EQUIPMENT

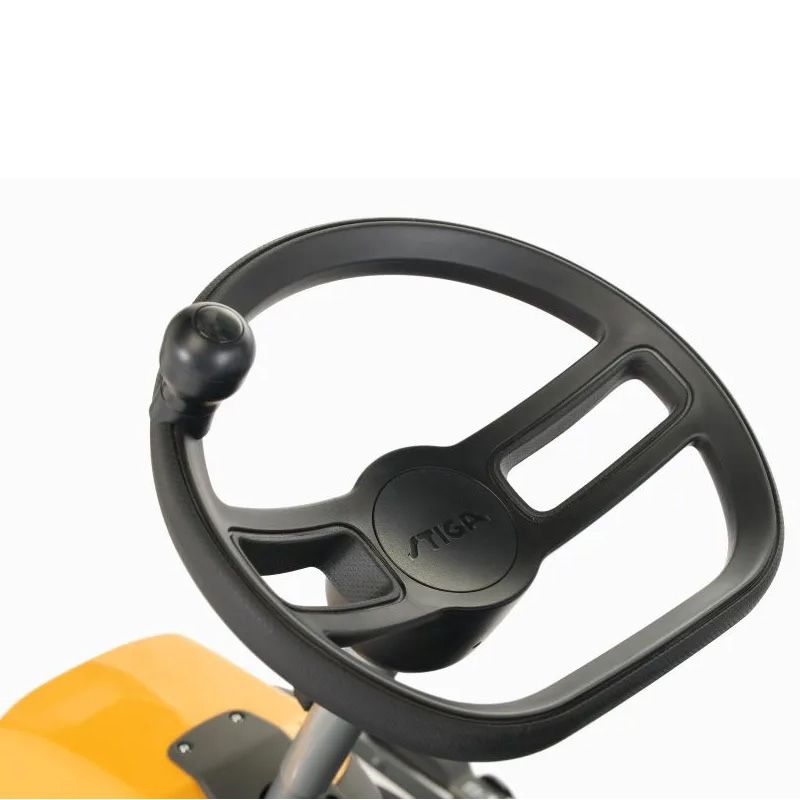

Steering wheel - Adjustable with spinner
Steering type - Articulated (50/50)
Power assisted steering - Hydraulic
Seat type - Comfort
Seat adjustment - Single lever
Dashboard - Yes - compact
Front wheel size - 16x7.50-8
Rear wheel size - 16x7.50-8
PTO engagement - Electromagnetic
Storage compartment - Seat column pocket

TOOLS KIT
Trailer hitch kit - Included

VIBRATION AND NOISE DATA
Max vibration on driver's seat (m/s2) - 0.6
Max vibration on steering wheels (m/s2) - 3.4
Measured sound power level dB(A) - 99
Measured sound pressure level at operator ear dB(A) - 85
Guaranteed sound power level (LwA) - dB(A) - 100

OVERALL DIMENSIONS
Pack weight - 242 kg
Product weight - 198 kg
Product length - 1960 mm
Product width - 864 mm
Product height - 1236 mm
