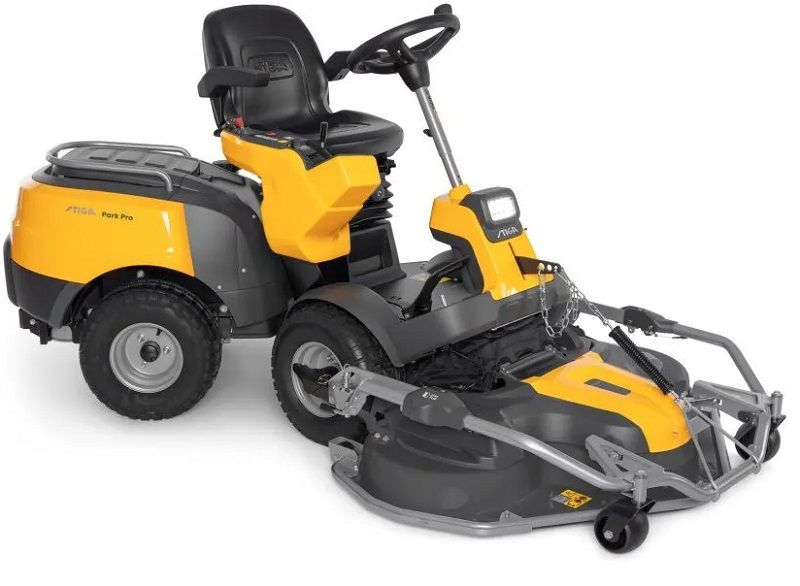

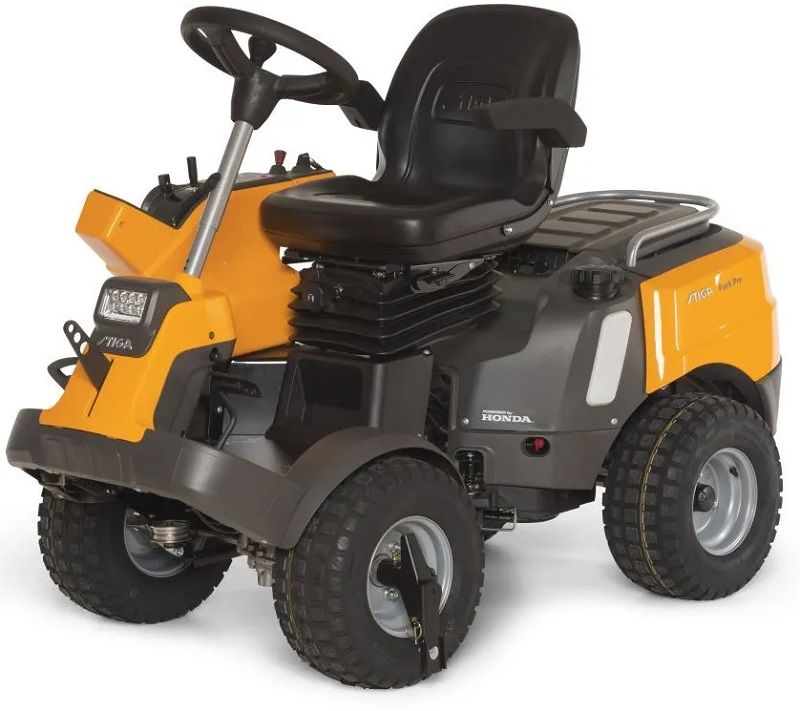

Rather than the usual mid-mounted deck, the STIGA Park Pro 900 WX features a front-mounted deck that not only provides the driver with a clear, unrestricted view of the intended cutting-path, but also makes it possible to mow areas that would be difficult to access with a conventionally configured ride-on or lawn tractor.
Thanks to its 50:50 articulated steering system, whereby the rear of the machine precisely follows the front, the Park Pro 900 WX is superbly maneuverable and can be driven without the operator having to worry about the engine section encountering accidental impact.
A foot-pedal hydrostatic transmission further enhances maneuverability by providing smooth, infinitely variable ground-speed control; while electric cutting-height adjustment makes it quick and easy to select the most effective blade setting.
The Park Pro 900 WX has been equipped with a Honda GXV 630 - 688 cc - twin cylinder engine that develops a huge 14.3 kW (@ 3200rpm); and which blends forced lubrication with a dual element air-filter to confer superior long-term reliability. A V-Twin arrangement works to minimize vibration and maximize torque; while OHV technology leads to a cut in both fuel consumption and noise.
This commercial grade machine benefits from electromagnetic PTO engagement; a desirable feature that makes controlling the blades or attachment completely effortless.

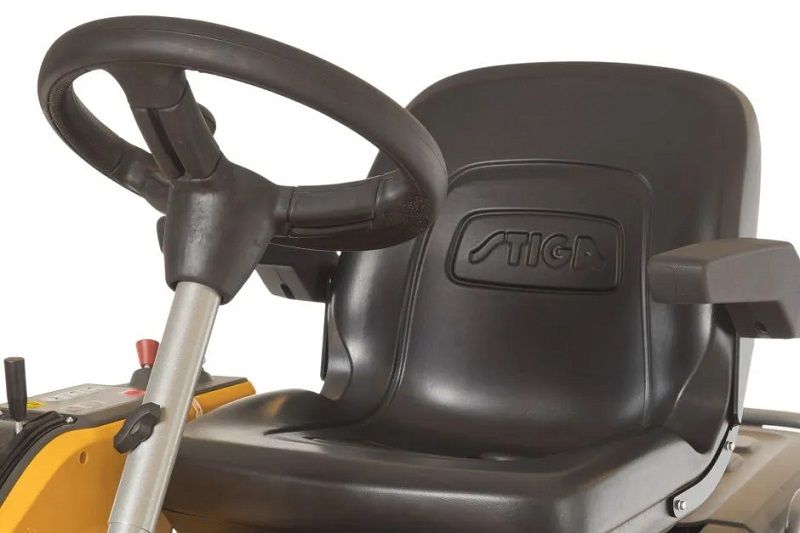

It’s fitted with an adjustable high-back seat (with armrests) that works with servo-assisted steering to make it a delight to drive; and it benefits from a user-friendly side control-panel that places all the main controls directly to hand.
Other important features include two-in-one mowing (mulching; rear-discharge) for great versatility; and 4WD for high-grip traction, even on difficult terrain.

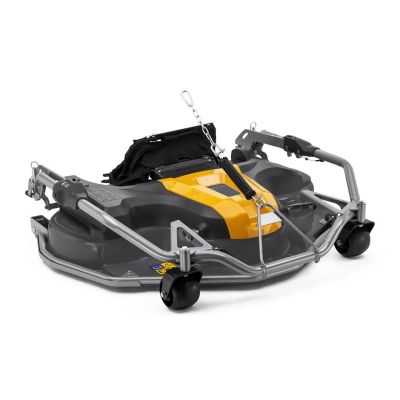

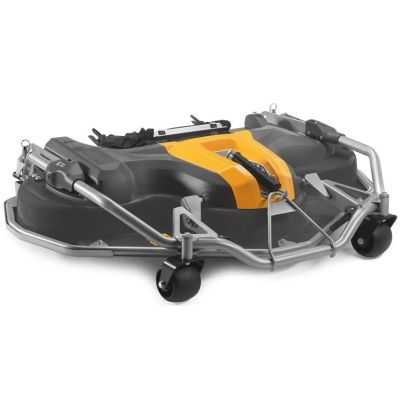

A choice of Quickflip decks is offered, all of which can be quickly raised for cleaning; and quickly removed for attachment fitting. Deck-widths range from 110 to 125cm - choose the one that best suits the dimensions and layout of your garden. Tow-hitch supplied as standard.
The best maneuverability - The 50:50 articulated steering confers unbeatable maneuverability and ensures the back end of the mower tracks the front end exactly and cannot therefore be subject to any potentially damaging impact. Hydro-piston further improves steering.
Just think about what you are doing- The forward-mounted deck means you’ll have a clear view of the cutting-line at all times and ensures grass isn’t flattened by the wheels prior to cutting.
Face any kind of terrain - Four-wheel-drive - the mower will power its way up slopes and across rough or damp grass.
Manage blades with a thumb - Electromagnetic PTO button will give you effortless blade control. Electric cutting-height adjustment makes selecting your preferred blade setting easy - simply push the button!
GENERAL INFO:
Lineup: Park Pro
SKU: 2F6430831/ST2
EAN/UPC: 8008984852808
POWER:
Power source: Petrol
Battery capacity: 24 Ah
Power: 14.3 kW
Mowing areainfo: 12500 ㎡
Engine Brand: Honda
Engine model: GXV 630
Displacement: 688 cm³
Engine rotation speed: 3200 rpm
Battery Voltage: 12 V
Choke: Manual
Engine cooling: Air
Fuel tank capacity: 15 l
Easy refill: Yes
Engine Oil tank capacity: 2.2 l
CUTTING SYSTEM:
Cutting method: Combi - switch between Multiclip mulching and rear discharge
Cutting width: 110 - 125 cm
Deck lift: Hydraulic
Cutting height adjustment: Electric
Service position: Yes
DRIVE SYSTEM:
Traction: Four-wheel drive
Maximum speed forward: 14 km/h
TRANSMISSION:
Transmission method: Pedal-operated
Transmission type: Hydrostatic
EQUIPMENT:
Armrests: Standard

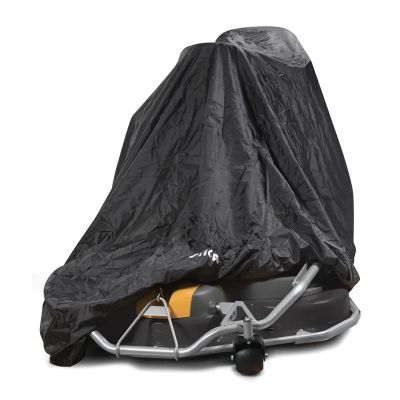

Protective cover: Included
Steering whee: lAdjustable with spinner
Steering type: Articulated (50/50)
Power assisted steering: Hydro piston
Seat type: Comfort with high back support and armrests
Seat adjustment: Single lever
Seat adjustable underweight: Yes
Dashboard: Yes with display
Front wheel size: 17x8.00-8
Rear wheel size: 17x8.00-8
Hour meter: Yes - on display

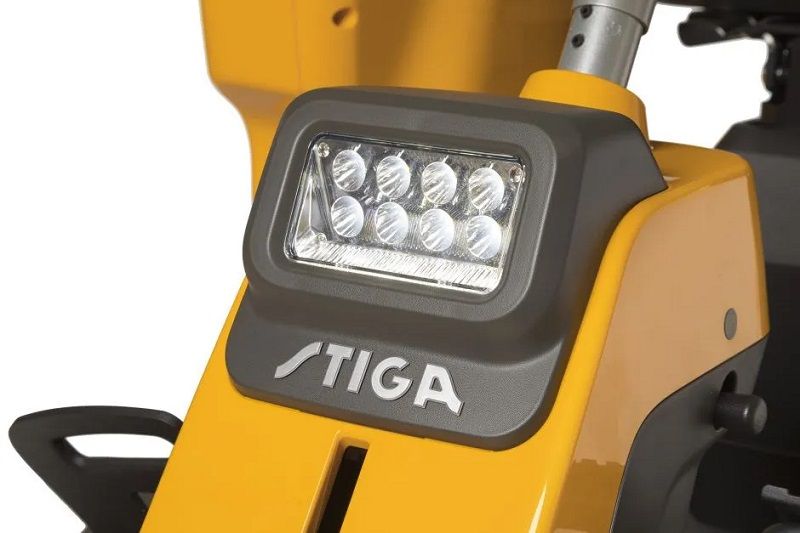

Headlights: Led
PTO engagement: Electromagnetic
Auxiliary hydraulic outlets: No
Storage compartment: Yes
TOOL KIT:
Trailer hitch kit: Included VIBRATION AND NOISE DATA:Guaranteed sound power level (LwA) - dB(A): 100
Max vibration on driver's seat (m/s2): 0.7
Max vibration on steering wheels (m/s2): 2.6
Measured sound power level dB(A): 100
Measured sound pressure level at operator ear dB(A): 85
OVERALL DIMENSIONS:
Weight: 275 kg
Pack weight: 323.7 kg
Product length: 1970 mm
Product width: 863 mm
Product height: 1256 mm
