Weibang, the commercial choice for lawncare & garden maintenance. The Legacy rear roller range from WEIBANG offers uncompromising quality, performance and durability, as well as an unrivalled cut for formal areas requiring a traditional striped finish. Designed specifically for the commercial user.
With a high performance aluminium cutter deck, heavy duty steel split rear roller system and a powerful Loncin engine, the Legacy is designed for the highest productivity and reliability. As a commercial machine every detail has been thought out from the vibration reduction, fully adjustable handles with user cockpit, the large durable grass collector with active airflow fabric to indicate when full, and the replaceable cutter deck steel inner skirt and aluminium outer scrape bumpers. The addition of the Blade Brake Clutch allows you to disengage the blade but keep the machine running, giving you the efficiency you need when emptying the collector.
Vibration Control Technology and PRO 3 speed gearbox
Thanks to the lower vibration levels all VCT models can be used for substantially longer by the operator, in fact operators can use machines for up to 121.87% longer than the previous version.
Featuring a PRO 3 speed gearbox, offering the ultimate in performance and reliability for the professional user. Engineered to the highest standards, the gearbox is nearly double the size of other models on the market with 3 solid gears and a full 3 year commercial warranty.
Aluminuim deck
Fully replaceable protection, with a steel inner deck liner to prevent damage from stones and other objects, and outer steel deck liners to protect the aluminium deck when mowing near walls. The cutter deck and front wheels are protected by a heavy duty front bumper, which doubles up as a lifting handle for transportation. The integrated air fins mounted at the front of the cutter deck allow maximum airflow into the cutter deck, ensuring the highest collection performance at any cutting height. Complete with a durable, hammered paint finish.
Service and Storage position
As a commercial lawnmower, easy transportation is key which is why this model has been designed with quick release folding handles, to allow for easy lifting when moving between locations, and easy access to the underside of the deck in the service position for cleaning and general maintenance.
PRO BBC
The Legacy PRO BBC features our latest innovative PRO BBC blade brake clutch. Designed purely for the professional following 3 years of lab and field testing. The PRO BBC offers continuous performance for over 40,000 engagements and features easily replaceable components to avoid costly repairs. Disengage the blades while the engine is running, it's perfect for when moving between lawns or emptying the grass collector.

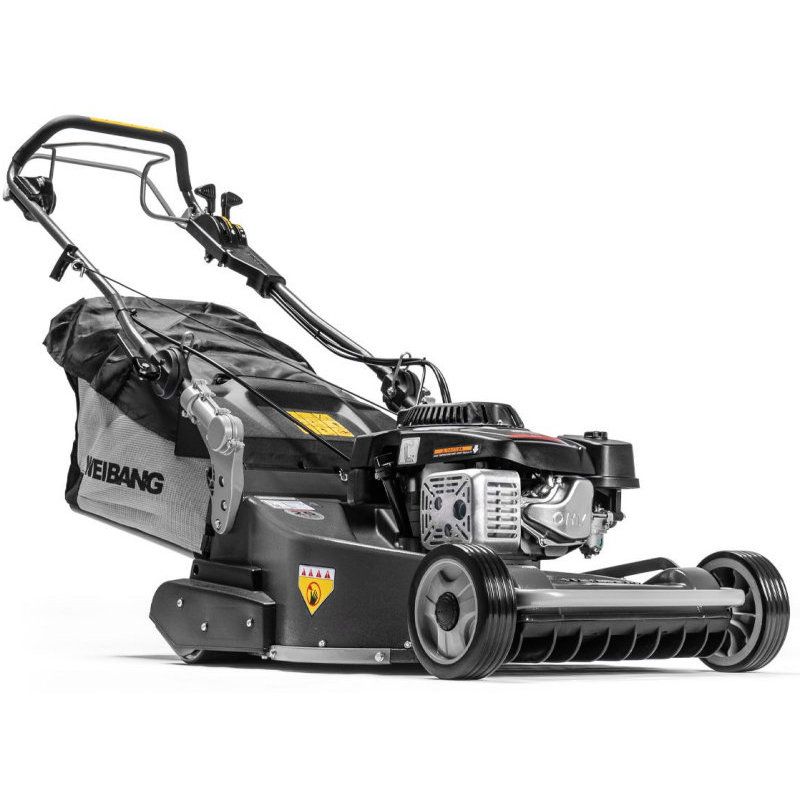

Specifications Weibang Legacy 56 Pro BBC LV Rear Roller 56cm Vari-Speed
Cutting Width (cm/"): 56 / 22
Suitable Area - up to 3000m²
Cutter Deck Material: Aluminium
Drive: PRO 3 Speed
Drive Speed: 3 / 3.5 / 4.6 km/h
Blade Brake Clutch: Weibang PRO BBC
Engine Model: WEIBANG XCV200 (Loncin)
Grass Collector: 85L c/w Airflow Fabric
Height Adjustment: Central Lever
Cutting Heights: 13-67mm (11 position)
Dimensions L x W x H (mm): 1790 x 605 x 1150
Storage Dimensions L x W x H (mm): 1040 x 605 x 540
Weight: 70Kg
Wheel size (mm): F 178 / R 127
Warranty: Domestic - 5 years, Commercial - 3 years
OPTIONAL STRIPE BRUSH
This machine is compatable with an optional stripe brush, this addition is fully adjustable with its own height
adjustment to alter the intensity when in use. The brush does not require any tools to remove when not being used and the bumper is still fitted to the lawnmower for easy re-attachment.
PART NUMBER:
WGSBK56 - Brush Kit
WG56B - Replacement Brush
